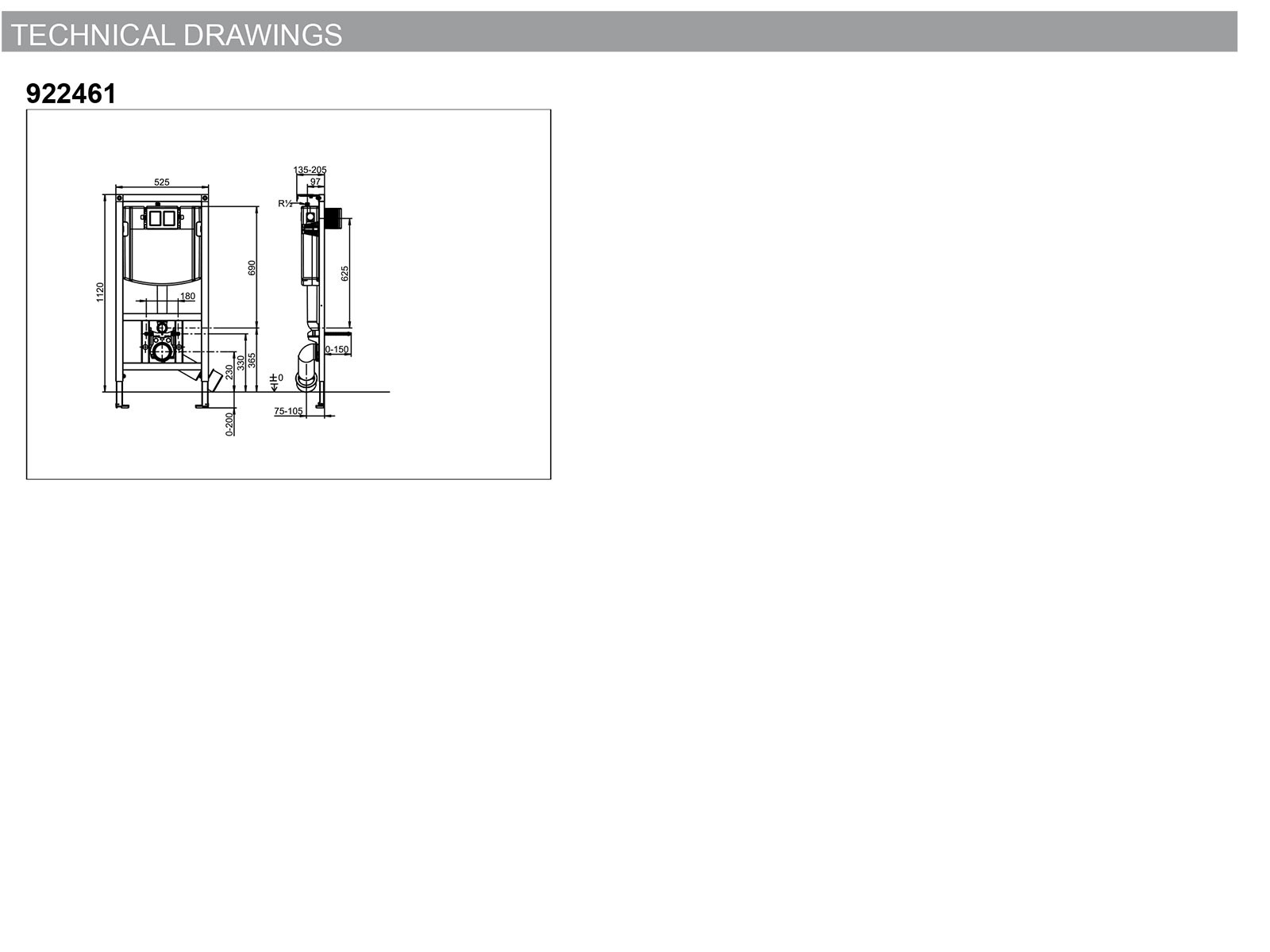

WIDTH 525 mm
HEIGHT 1120 mm
DEPTH135 mm
WEIGHT 14 kg
DESCRIPTION for covering with plasterboard, installation onto a solid brick wall, in dry-wall constructions etc., adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm, depth adjustment front edge of element: 135-205 mm
incl. 2 pairs of wall mounts, incl. self-locking feet with adjustable base plates and fastening materials, 2 times M12 WC retaining bolts adjustable to 180/230mm with protection plugs and nuts, installation instructions, without flush plate
tested in accordance with DIN EN 14055
packaged in a box
For combination with: for wall-mounted WC
self-supporting powder-coated steel frame, fully pre-assembled, front operated, with small inspection opening
concealed cistern insulated against condensation water, with dual flush (7.5-4.5 l / 4-2 l), fac
