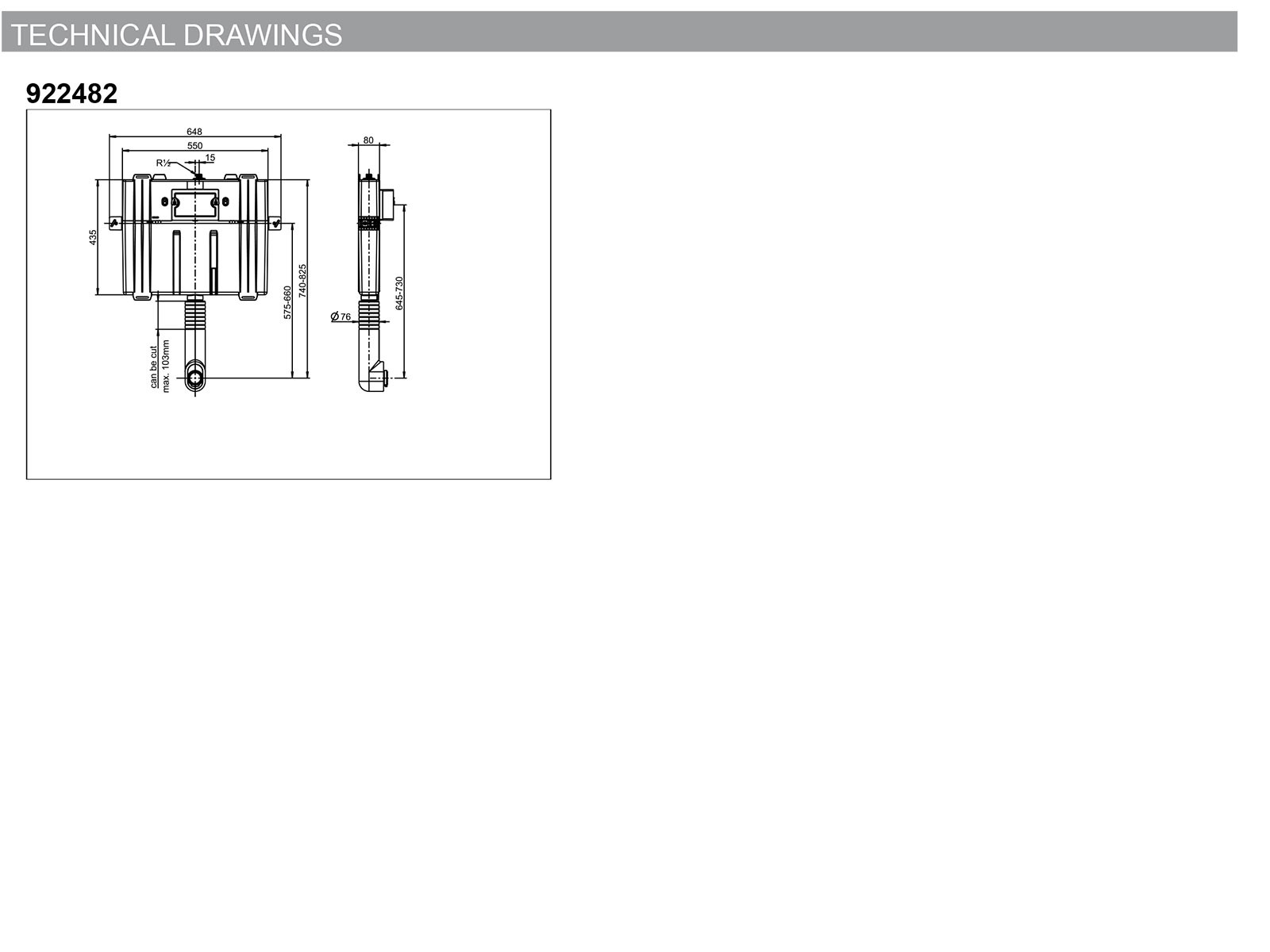

WIDTH 648 mm
HEIGHT 740 mm
DEPTH 80 mm
WEIGHT 3,5 kg
DESCRIPTION white flushing pipe, flushing pipe connector, protection cap and white rosette, with fixing brackets, fastening materials, reinforcing mesh, without flush plate, without attachment and waste bend for wall-mounted toilet
tested in accordance with DIN EN 14055
individual packaging materials
For combination with: for wall-mounted WC, for floor-standing WC, back to wall
front operated, button function transmitted to drain fitting via flexible cables, connection to flush plate via bayonet joint, with protection cap for the flushing pipe
concealed cistern with insulation against condensation with dual flush 3/6 l, adjustable to 3/4,5 l, maximal flush quantity 7.5 l, filling valve Noise Class I, angle valve connection set G1/2, protection box for access opening can be cut to size, adjustable flush
